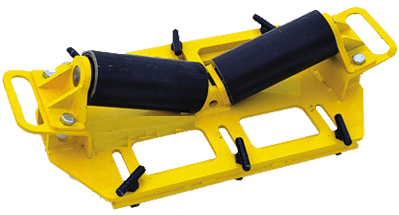

Pipe rigging rollers are used for a variety of applications, in particular for installation of pipe into racks at refineries, power plants, and other
industrial facilities.–supplied with steel or urethane options, handles on sides for safe and easy lifting and installation.

Safer, Faster and Easier Installation Or Removal Of Pipe.

Standard features:
Quick clamp system for 5-12”structural beam flange range
Handles for easy moving
Heavy duty roller system

-------------------------------------------------------------------------------------------------------------------

                                         Specifications:

             TEC-1                           TEC-2                                      EC-3


1-Ton Unidirectional     5-Ton Unidirectional            10-Ton Unidirectional

Load Capacity: 1,000 Kg,      Load Capacity: 5,000 Kg,              Load Capacity: 10,000 Kg,

Diameter Range: 2”– 24”,      Diameter Range: 2”– 42”,             Diameter Range: 24”– 60”,

Equipment Mass: 43Kg          Equipment Mass: 45 Kg               Equipment Mass: 105 Kg

Shipping Dimensions:            Shipping Dimensions:                   Shipping Dimensions:

27”x 16”x 9.5”                        27”x 16”x 7.5”                                43”x 17”x 11.5”
